Name: E550028 ECHU Cable UL4659 150C 3000V Silicone Rubber Power Cable Shield Cable
Brand: ECHU
Price: 0.302 USD

Model Number : UL4659

Place of Origin : China

Packaging Details : in roll or splint reel

Payment Terms : T/T, L/C

Voltage : 3000V

Condutor : Bare copper or tinned copper

MOQ : 100meter

Delivery Time : within 10days

Price : USD0.302 to USD3.256/m

Temperature : -60-+150℃

Certification : UL

Supply Ability : 10000km per week

Color : Black/red/....

Brand Name : ECHU

Contact Now

UL4659 Multi-Core Silicone Rubber AWM Cable Shield Cable

UL4659 is a multi-core silicone rubber cable complying with UL758 Appliance Wiring Material standard.

Construction Conductor: Class 5 flexible stranded bare or tinned copper; Insulation & Outer Sheath: Extruded silicone rubber (SR); Optional shielding: Aluminum foil + tinned copper braid upon request.
Electrical & Thermal Ratings Rated Voltage: 3000V AC Rated Temperature: 150°C (dry locations) Operating temperature range: -60°C ~ +150°C
Flame Performance Self-extinguishing, meets UL FT2 horizontal flame test.
Key Features High flexibility, excellent heat resistance, low-temperature resistance, ozone resistance, UV resistance and good dielectric performance. Resistant to vibration and frequent bending; halogen-free and RoHS compliant. Shielded version can effectively reduce electromagnetic interference.
Typical Applications Internal wiring for robots, heating equipment, new energy devices, automation machinery, household appliances and high-temperature multi-circuit equipment.

Item	UL4659 150°C 3000V Silicone Rubber Power Cable (Shield)
Conductor	Bare copper strand
Insulation	SR
Outer sheathS	SR
Core Number	Multicores
Nominal Voltage	3000v
Temperature Range	-60°C/+150°C
Temperature Range	-60°C/+150°C
Characteristic	High-flexibility, cold-resistant, and flame-retardant (UL FT2) 3000V silicone rubber shielded cable
Color	Optional
Application	Widely used in household appliances, lighting, heaters, robotics, and internal wiring of industrial equipment.

E550028 ECHU Cable UL4659 150°C 3000V Silicone Rubber Power Cable Shield Cable

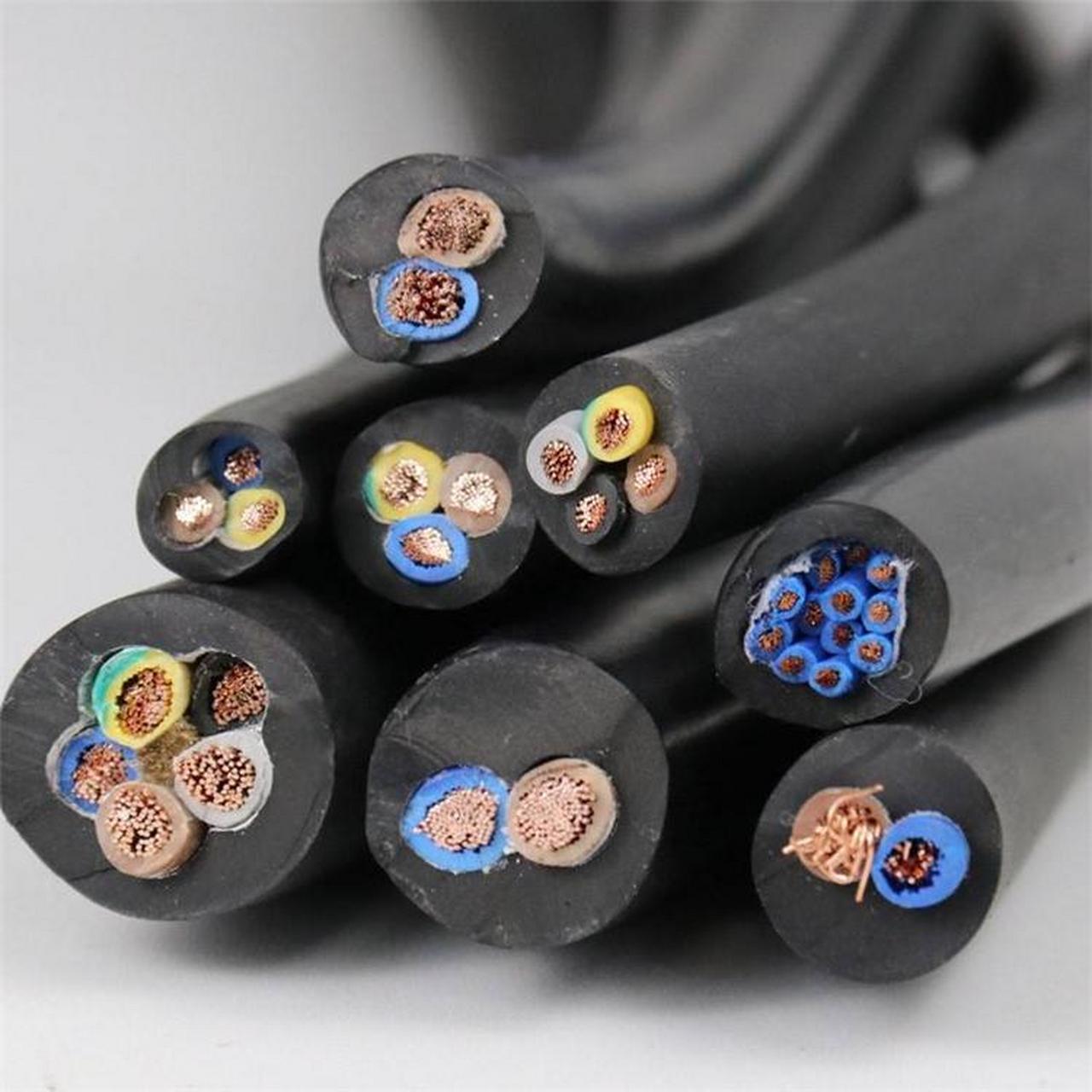

E550028 ECHU Cable UL4659 150°C 3000V Silicone Rubber Power Cable Shield Cable Images
