E550028 ECHU Cable UL3641 180°C 3300V Silicone Rubber Single-Core Cable

Product Categories

ECHU Special Wire & Cable (Kunshan) Co., Ltd.

Contact Now

Name: E550028 ECHU Cable UL3641 180C 3300V Silicone Rubber SingleCore Cable
Brand: ECHU
Price: 0.302 USD

Model Number : UL3641

Payment Terms : T/T, L/C

Voltage : 3300V

Condutor : Bare copper or tinned copper

Place of Origin : China

Packaging Details : in roll or splint reel

MOQ : 100meter

Delivery Time : within 10days

Price : USD0.302 to USD6.285/m

Temperature : -60-+180℃

Certification : UL

Supply Ability : 10000km per week

Color : Black/red/....

Brand Name : ECHU

Contact Now

UL3641 Single-Conductor Silicone Rubber AWM Cable

UL3641 is a high-voltage & high-temperature silicone wire complying with UL758 Appliance Wiring Material standard.

Construction Conductor: Solid or Class 5 flexible stranded bare / tinned copper (16AWG ~ 600kcmil); Insulation: Extruded silicone rubber (SR).
Electrical & Thermal Ratings Rated Voltage: 3300V AC Rated Temperature: 150°C / 180°C (dry locations) Operating temperature range: -60°C ~ +180°C
Flame Performance Self-extinguishing, meets UL FT2 horizontal flame test.
Key Features Excellent flexibility, outstanding heat resistance, low-temperature resistance, ozone resistance, UV resistance and chemical resistance. High dielectric strength for high voltage circuits. Uniform insulation thickness for easy stripping; halogen-free and RoHS compliant. Fiberglass braid covering is optional.
Typical Applications Internal wiring for high-temperature electrical equipment, motors, transformers, heating devices, ovens, inverters, new energy equipment and industrial machinery.

UL3641 180°C 3300V Silicone Rubber Single-Core Cable
Item	UL3641 180°C 3300V Silicone Rubber Single-Core Cable
Conductor	Flexible Stranded Copper Conductor
Insulation	Silicone Rubber
Outer Sheath	Not Applicable
Nominal Voltage	3300V
Test voltage	7000V
Temperature Range	-60°C/+180°C
Color	Optional
Application	This cable is mainly used for internal wiring in high temperature areas such as household appliances. lighting, heaters, motors, dryers, ovens, etc.

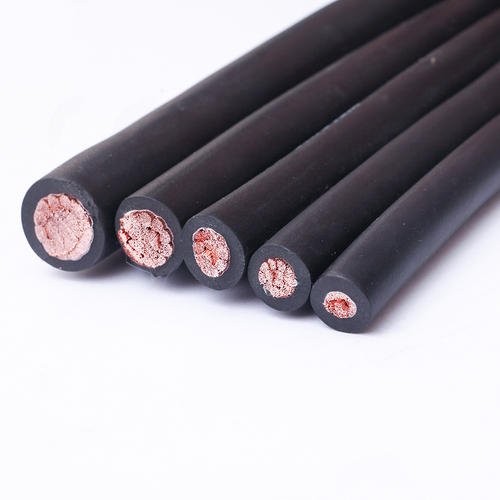

E550028 ECHU Cable UL3641 180°C 3300V Silicone Rubber Single-Core Cable

E550028 ECHU Cable UL3641 180°C 3300V Silicone Rubber Single-Core Cable Images
